Description
Intersteel Plain bearing hinge SKG3 89 x 89 x 3 mm DIN right/left brushed stainless steel
Article code: 0035.462565

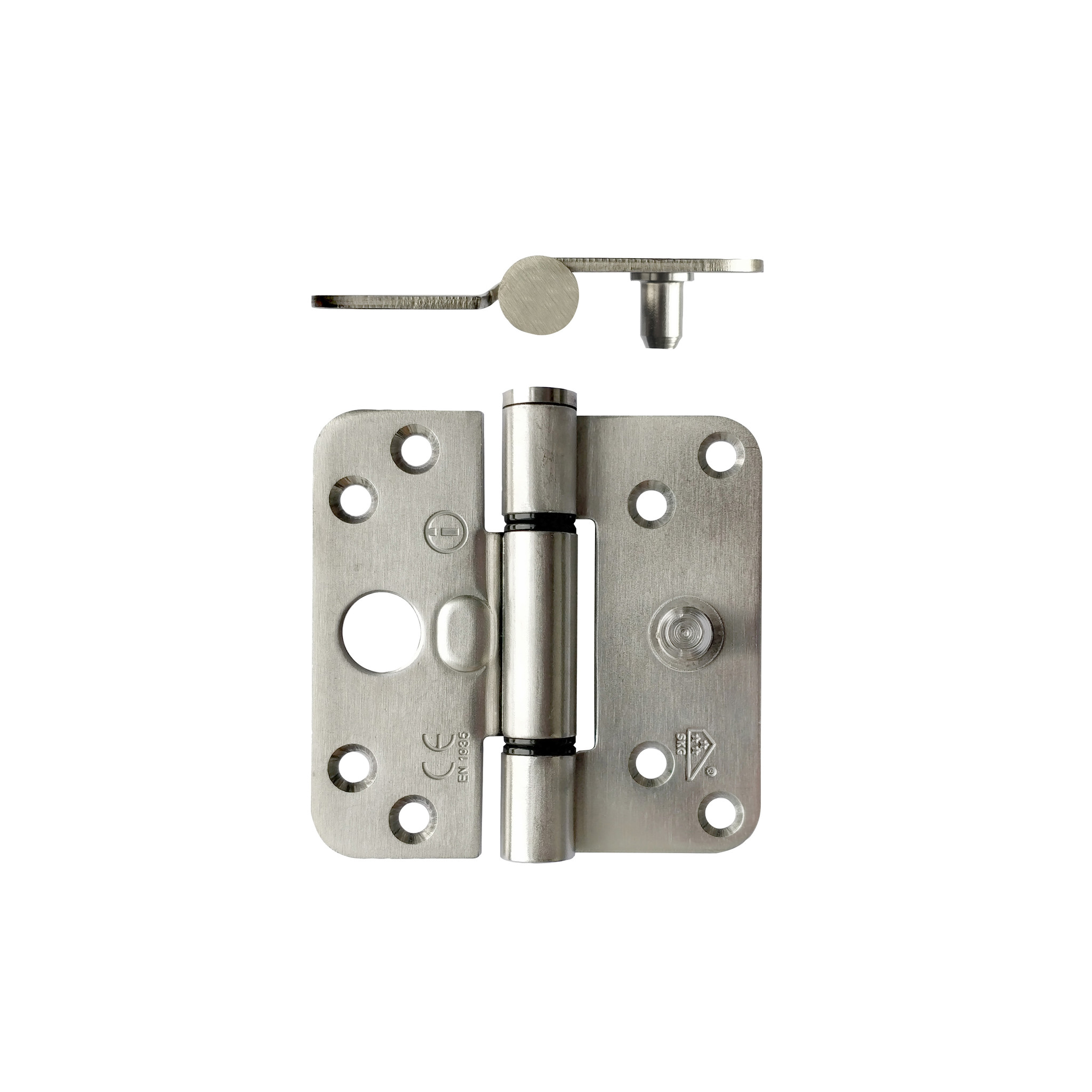

This plain bearing hinge is made of stainless steel and has been brushed afterwards, giving it a matt appearance.
The hinge has rounded corners and a button through. This means that the knot (the pivot point of the hinge) is placed off-centre, so that cutting in/milling for the knot in the frame is not necessary.

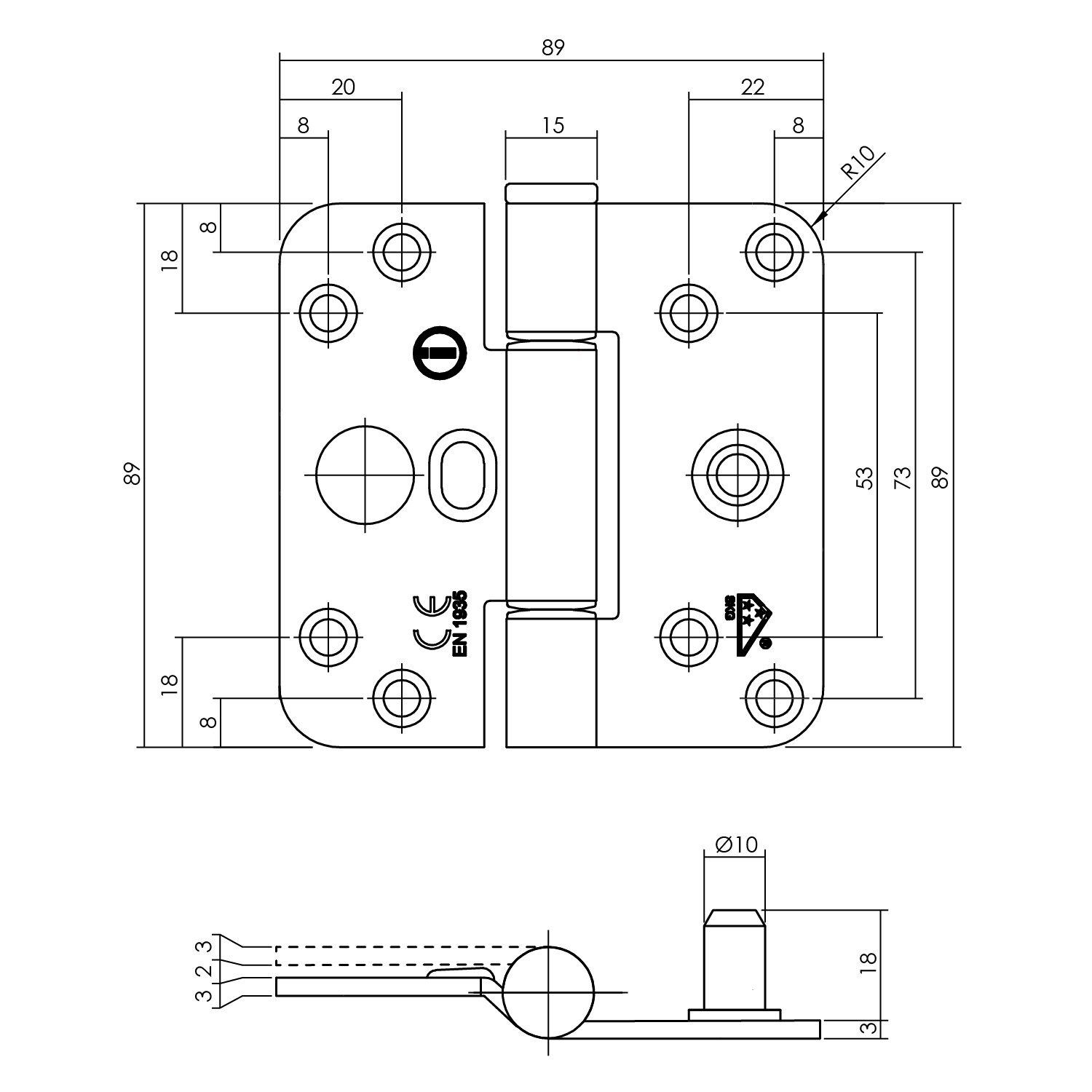

In addition, the plain bearing hinge is maintenance-free, due to the self-lubricating properties of the plastic plain bearing. It can be used on both right-hand and left-hand doors, because you can remove the pin. The plain bearing hinge is 89mm high, 89mm wide when unfolded and has 3mm thick blades.
This product is equipped with a thief pin and SKG*** approved, which means that it is extra heavy burglar-resistant hinges and locks. The hinge has a CE mark and is certified according to the European Standard EN1935:2002+AC:2003 and falls into hinge class 13 and user class 4. Suitable for doors in escape routes.
These hinges can be used on both the left and the right and are supplied individually excluding mounting material.
