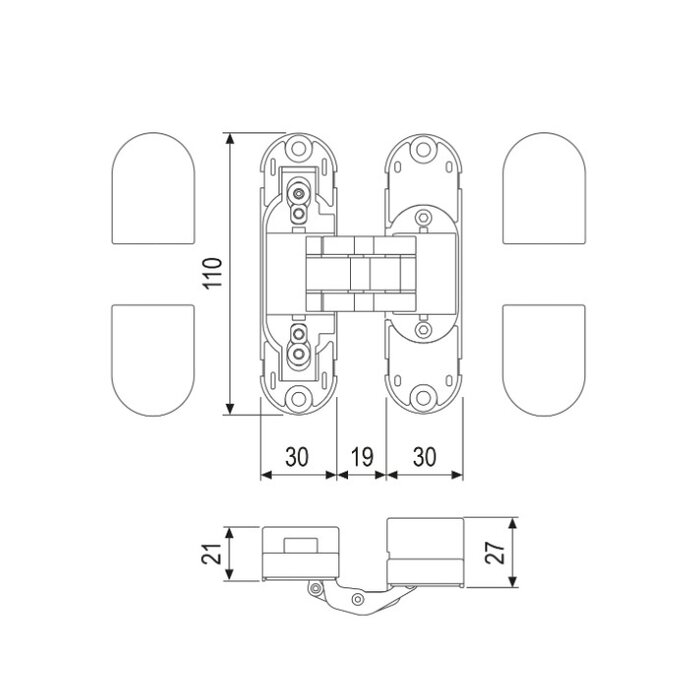

These invisible hinges, also known as 3D hinges, can be fully integrated into the door. As a result, no hinges are visible when the door is closed.

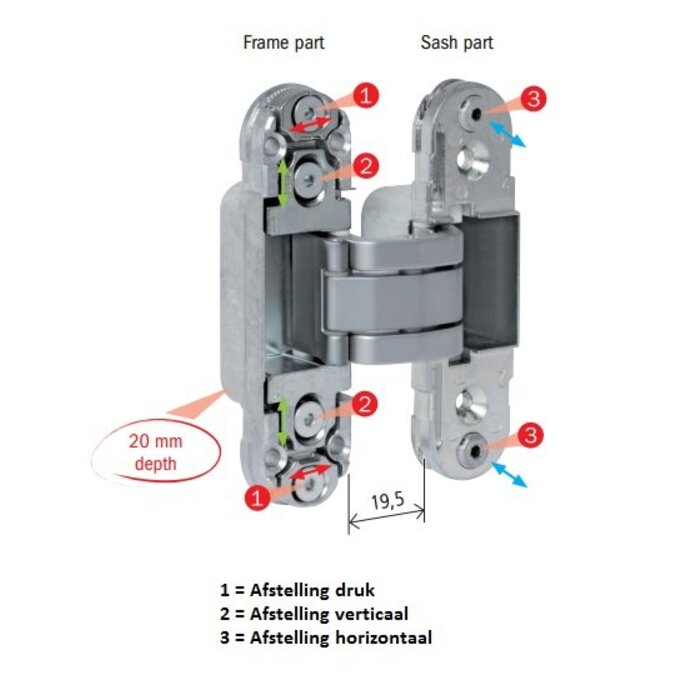

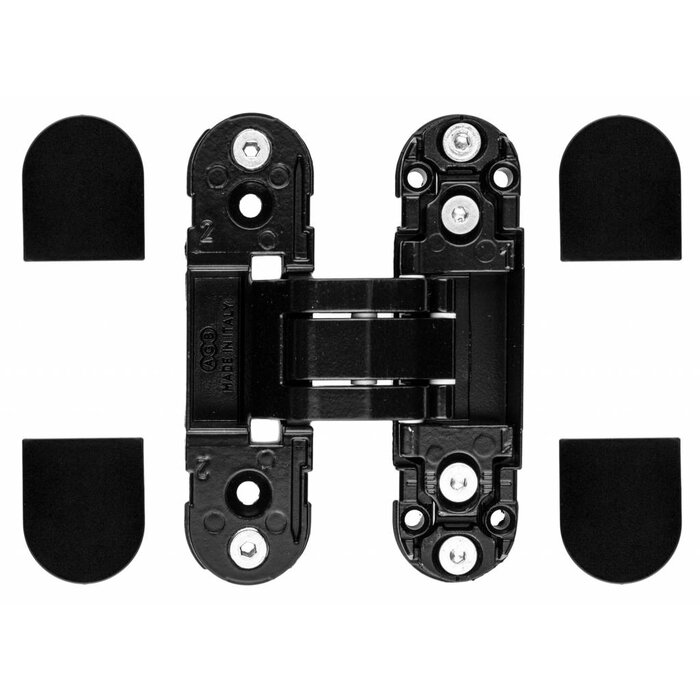

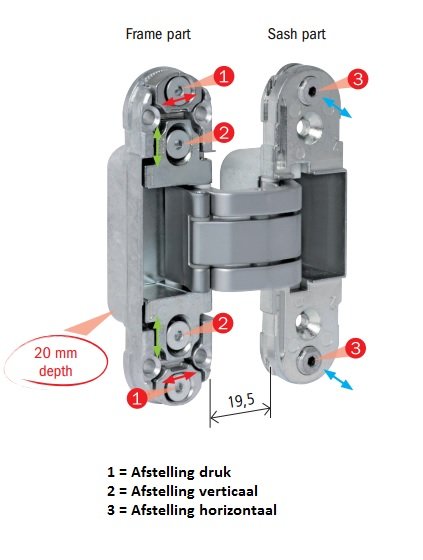

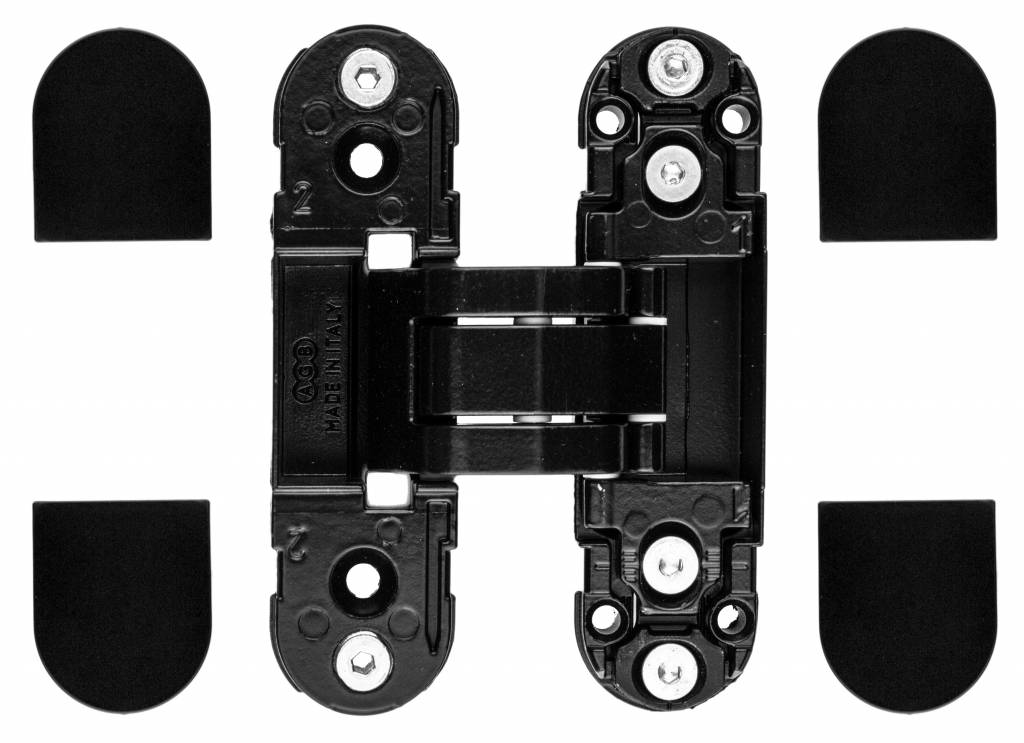

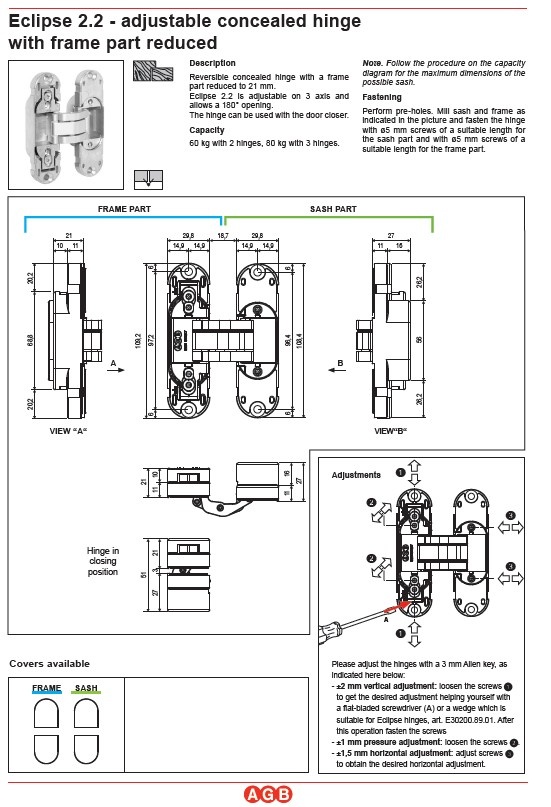

These black 3D hinges can be rotated 180° and are adjustable in 3 ways (pressure, vertical, and horizontal).

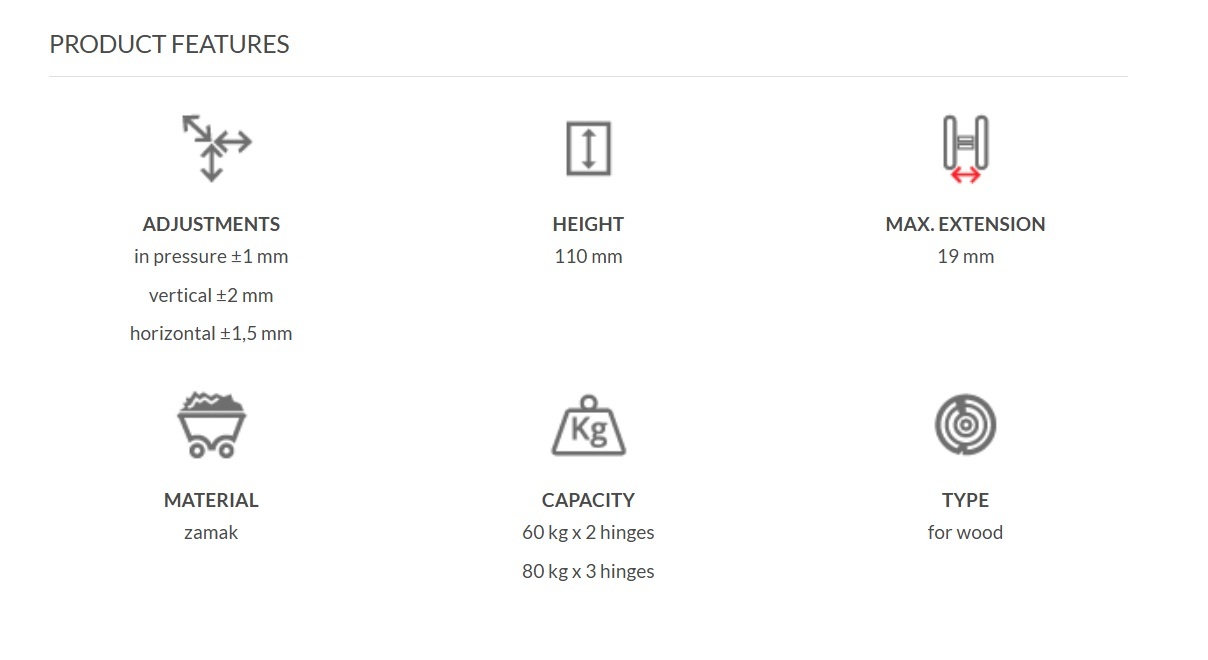

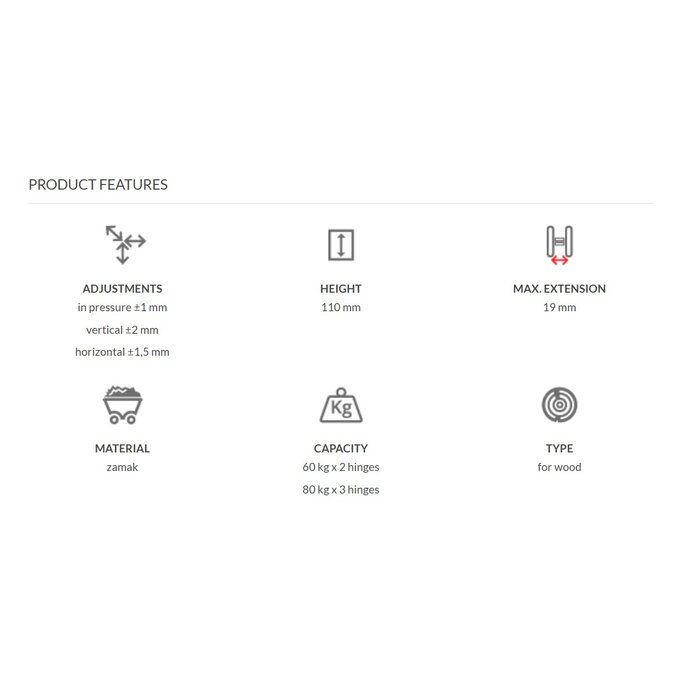

The "Eclips 2.2" hinges are suitable for fire-resistant doors (EN1634, 60 min.) and have a load capacity of 30 kg per hinge. These black 3D hinges can also be used in combination with door closers.

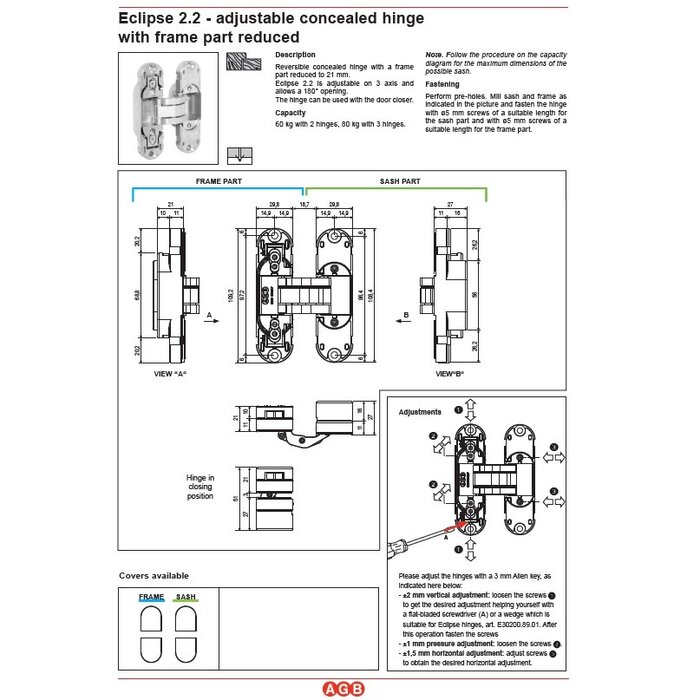

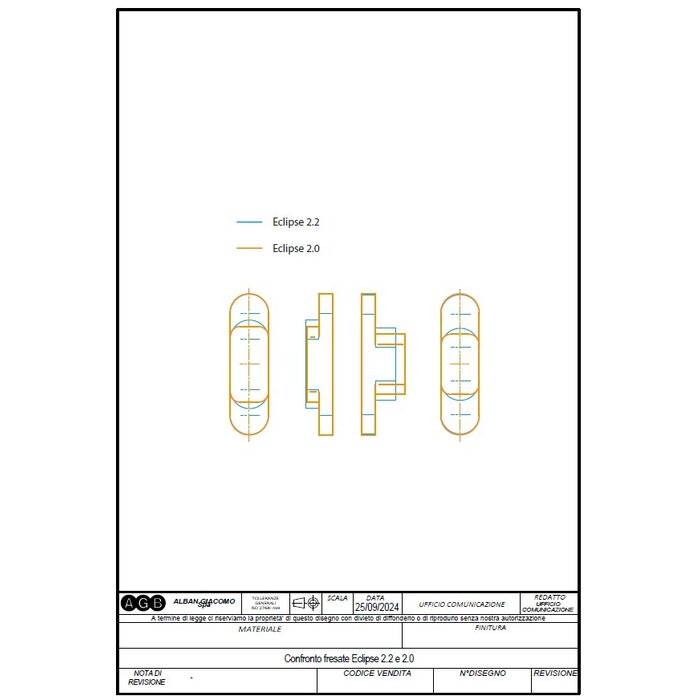

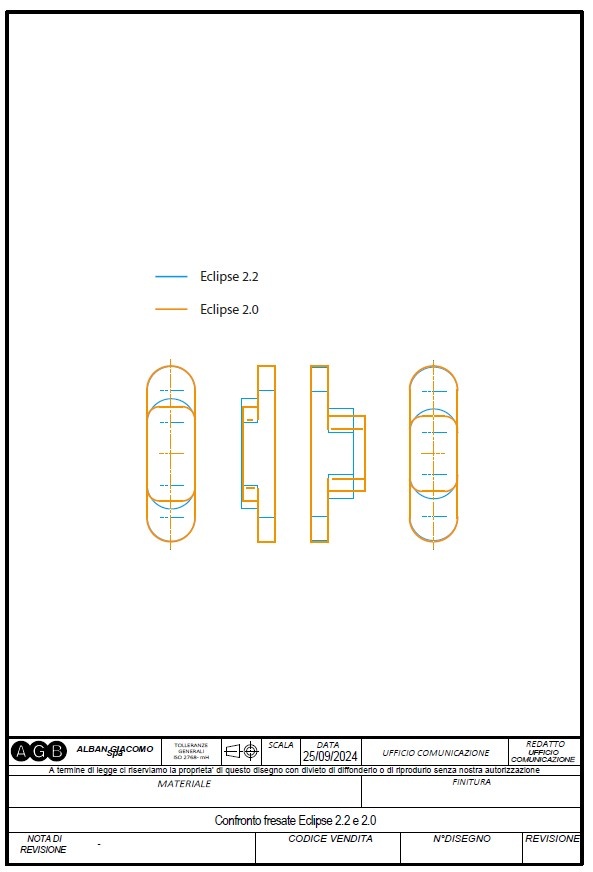

The "Eclipse 2.2" concealed hinge is an improved version of the "Eclipse 2.0" concealed hinge. The load capacity has increased to 30 kg per hinge, the adjustment functions have been improved allowing for faster installation, and the design is finished with recessed aluminium cover plates.
Please note: Screws are not included.
