Light bronze 3D hinge - 30x120mm - Otlav Invisacta IN300120VU02 with cover caps
Article code: IN300120VU02-058977
These light bronze 3D hinges are from the Italian company OTLAV, which has been known for its hinges for years.
The Bronze 3D hinges are available in widths of 23mm and 30mm. This model is the 30mm version.

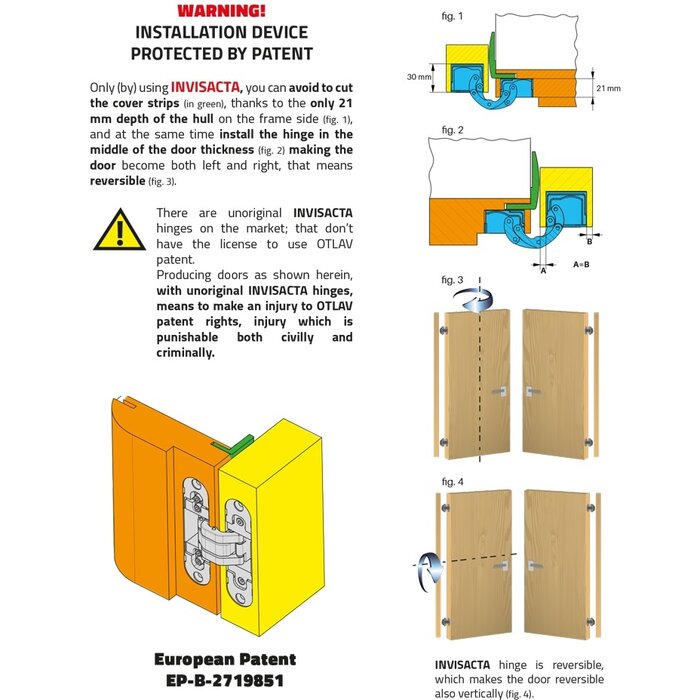

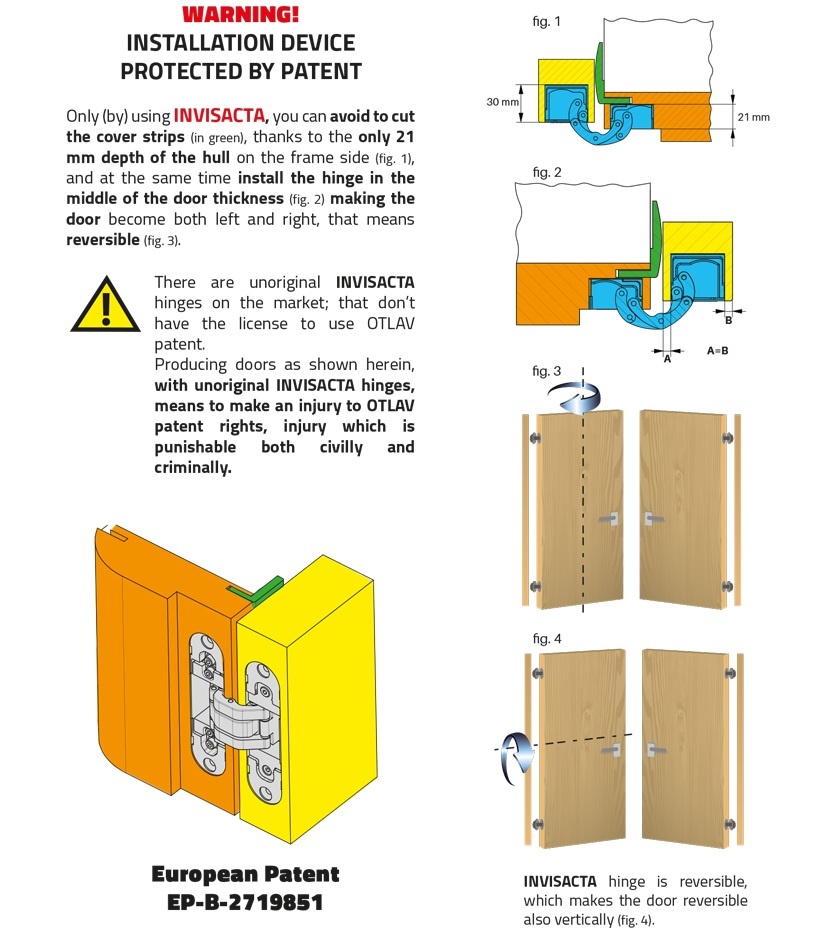

These 30x120mm 3D hinges are unique and patented , allowing you to mill them perfectly in the center thanks to their 30mm width. This means you can easily adjust the hinge to fit left- or right-hand doors.

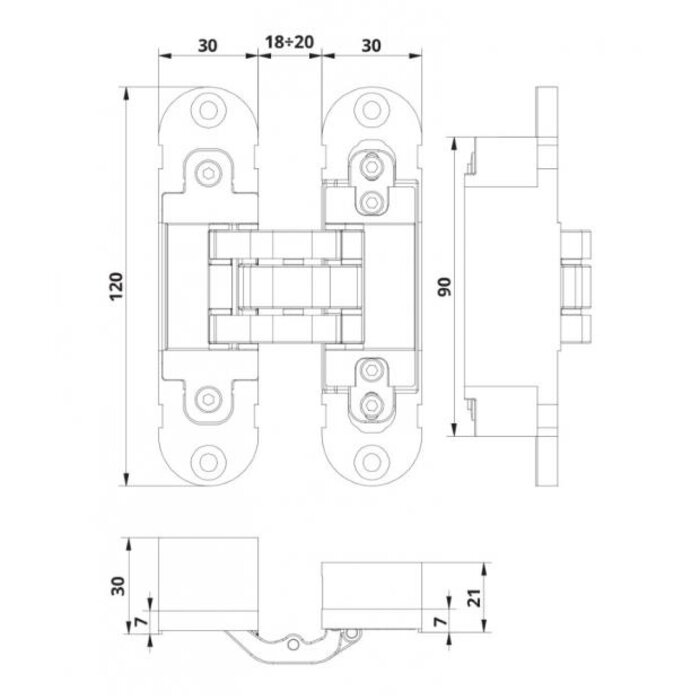

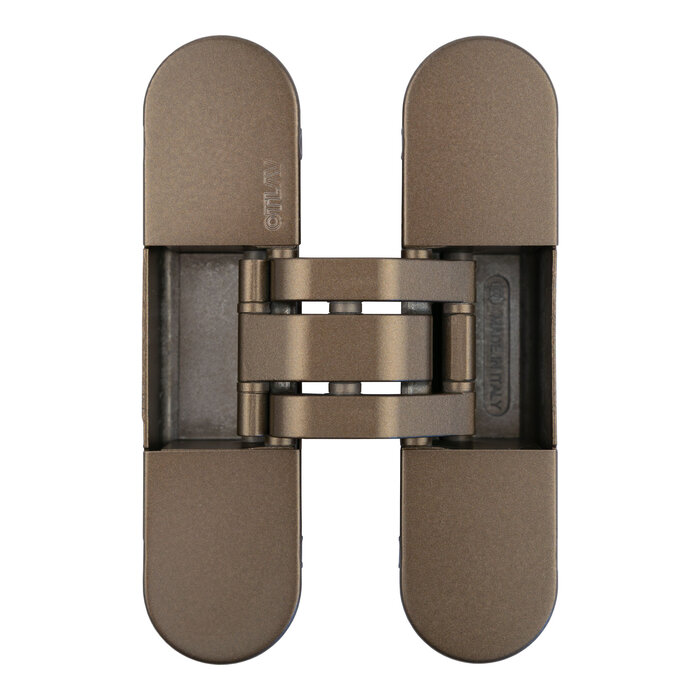

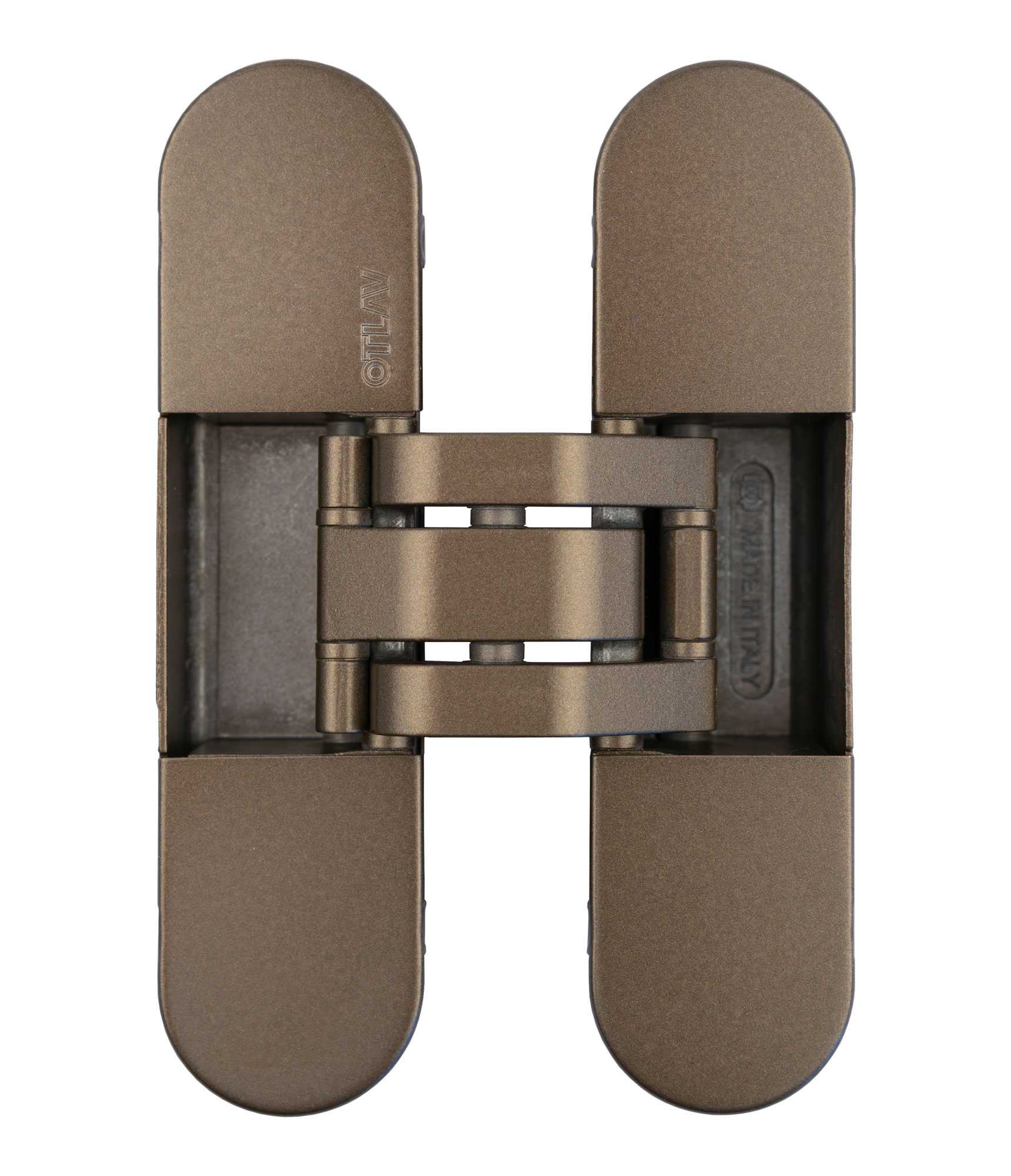

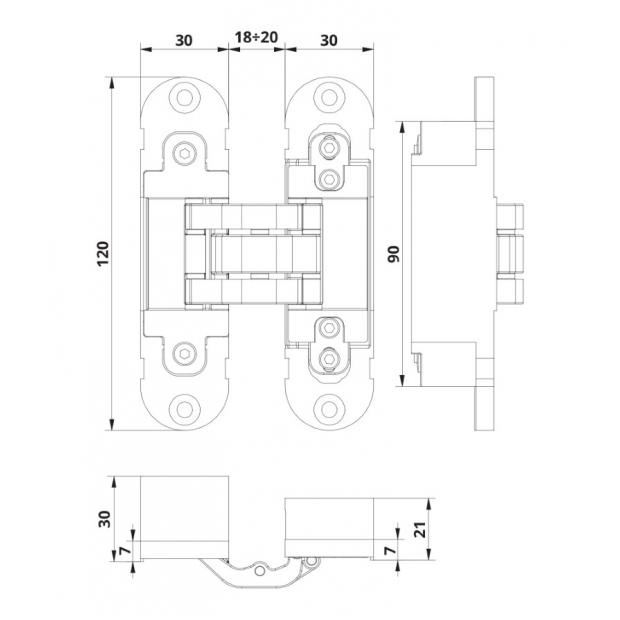

These Bronze concealed hinges have a height of 120mm, a width of 30mm and are a beautiful, completely light bronze colour.
They come with four light bronze cover caps. These four caps fit snugly over the hinges and stay in place. The whole creates a beautifully finished bronze 3D hinge.
The advantage of Otlav 3D hinges are the metal cover caps.

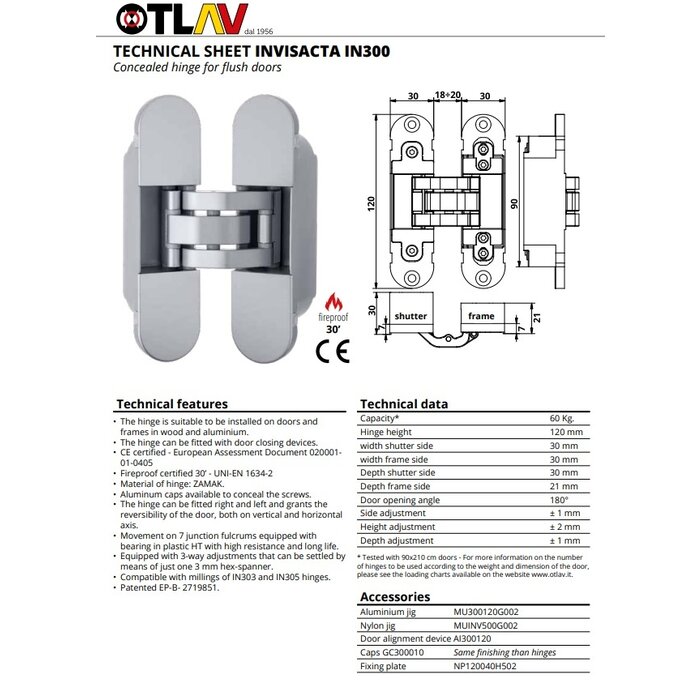

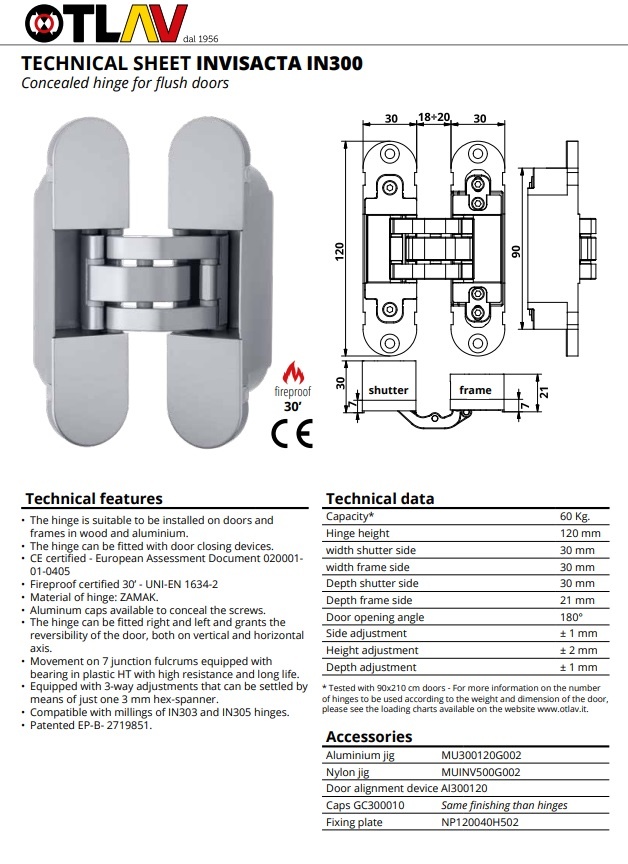

These bronze blind Otlav Invisacta IN300120 hinges have a load capacity of 60 kg. This capacity is achieved with two hinges. They are also fire-resistant for 30 minutes.
These 3D hinges can open 180° and can be adjusted in 3D (±1mm laterally - ±2mm height - ± 1mm depth).
They are supplied individually without screws and including 4 cover caps.
Need a milling template? You can find a matching Nylon milling template below under related products.
