OTLAV Invisacta IN570 invisible hinge 3D – Matte Silver

The OTLAV Invisacta IN570 is an invisible 3D adjustable hinge for interior doors and is finished in matte silver . After closing the door, the hinge disappears completely from view, making it particularly suitable for sleek and minimalist door concepts.

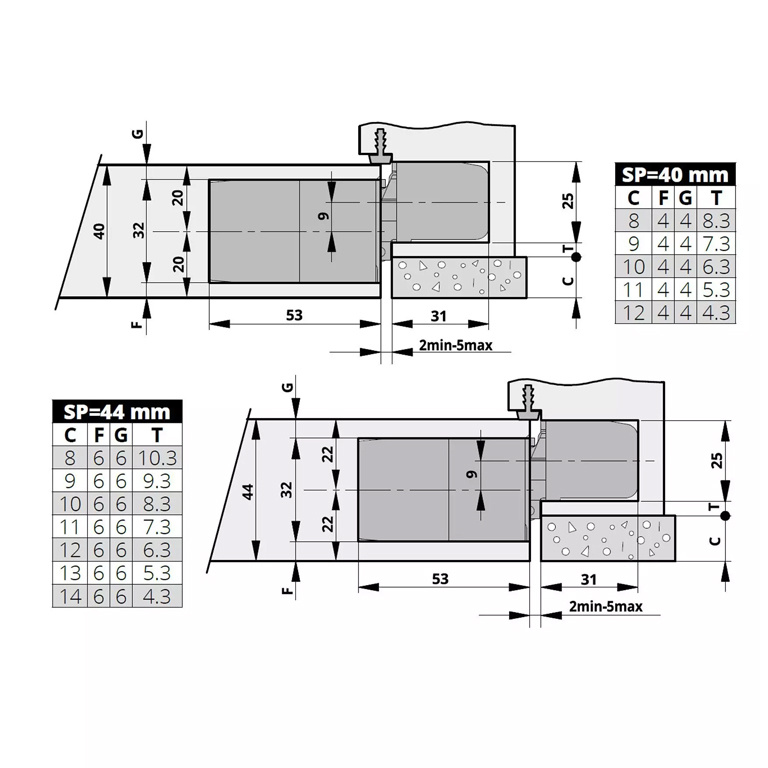

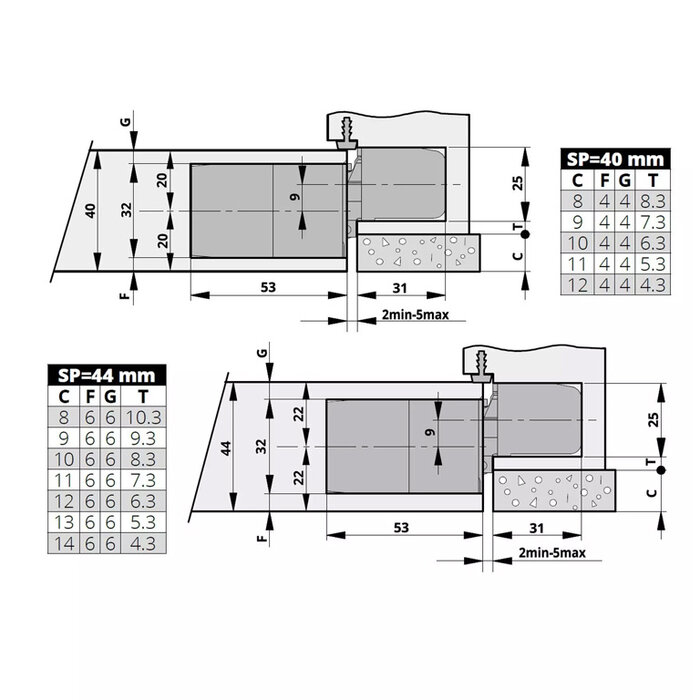

The IN570 hinge was developed for doors with a recessed door frame, thereby also enabling the use of wall plates. It is suitable for door thicknesses of 40 and 44 mm. Installation with a seal of up to 6 mm is possible, and the system allows the use of thick door frames and wall plates up to 18 mm.

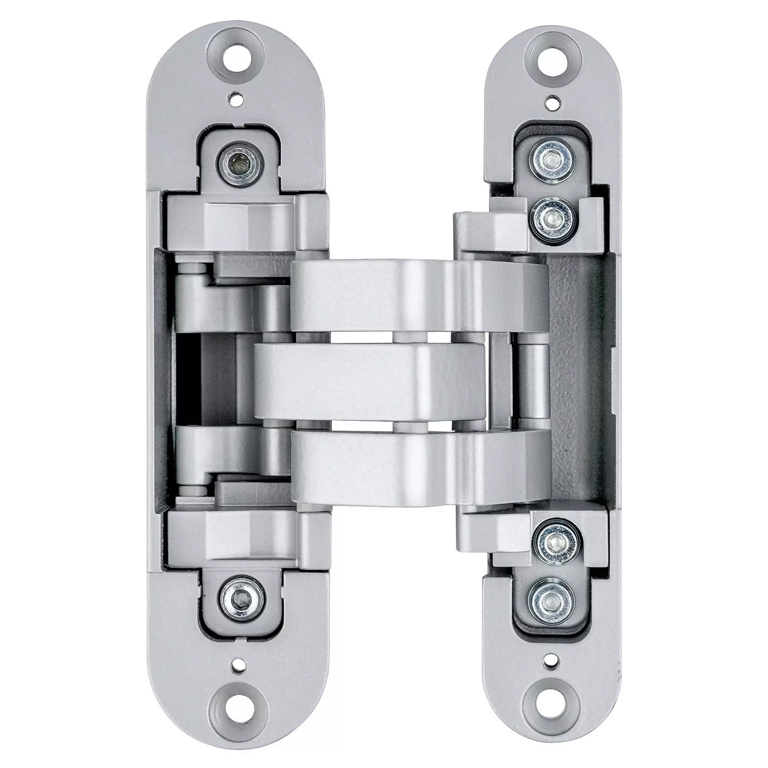

The construction consists of a zamak housing with an aluminium interior. Seven hinge joints ensure minimal friction and smooth movement. Plastic bushings prevent direct contact between the load-bearing elements.

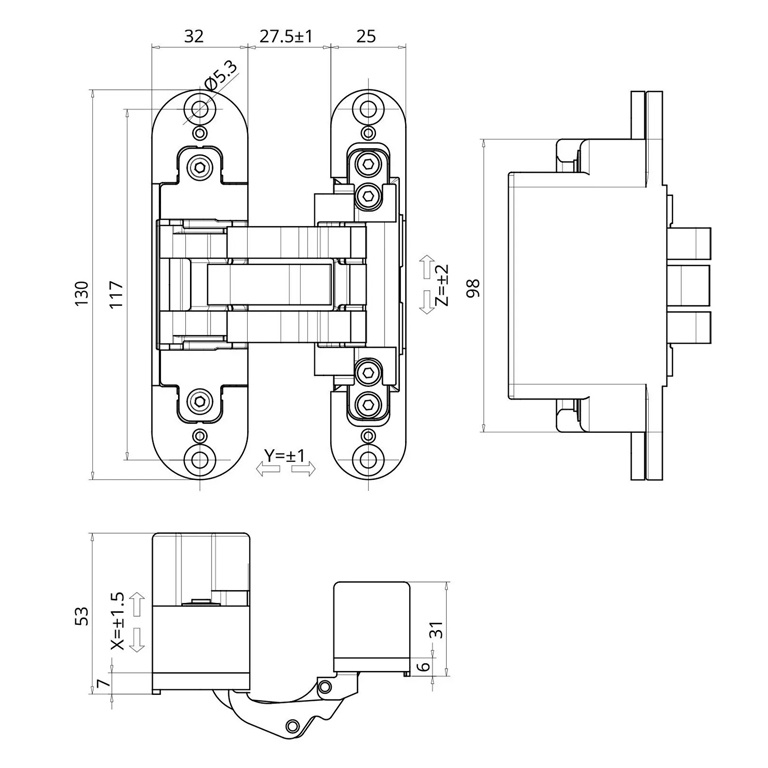

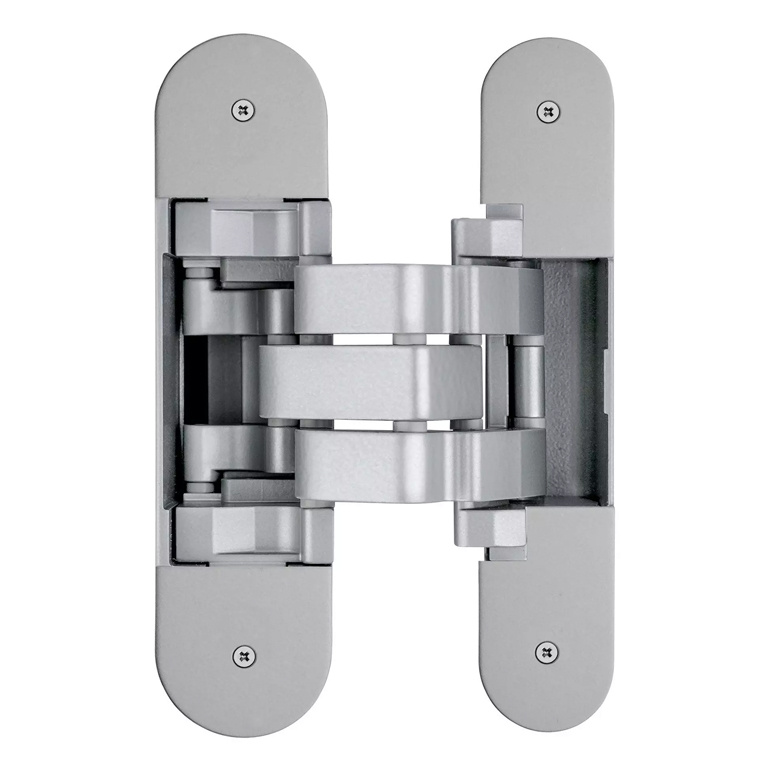

The hinge is 3D adjustable with a single Allen key . The mounting screws of the hinge housing do not need to be used for adjustment. Cover caps conceal the adjustment screws for a neat finish.

When using 2 hinges, the maximum door weight is 60 kg . The hinge is reversible and can be used for left- or right-opening operation when mounted in the center of the door leaf.

Technical specifications

Reversible for left- and right-opening applications when the hinge is mounted in the center of the door leaf.
