Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Otlav

OTLAV Invisacta IN570 invisible hinge 3D – Matte White

Add to wishlist

€36,30 €47,50 €57,48 Incl. tax per piece

Delivered in: 4-7 days

Europe-wide shipping

Money back guarantee

For private and professional customers

Become a business customer and take advantage of special purchase prices! Click here to request an account.

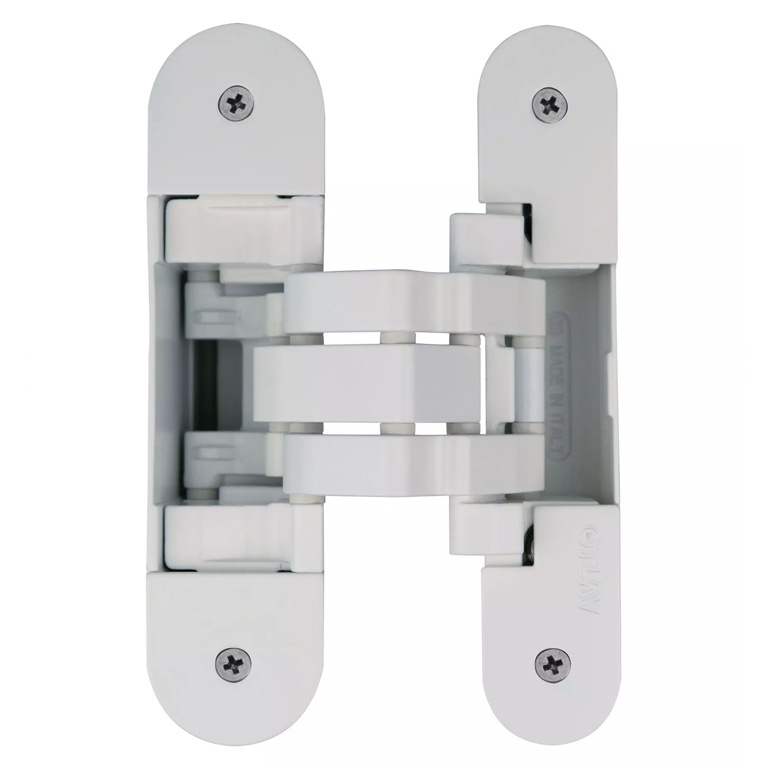

Description 3D adjustable invisible hinge in matte white for 40 and 44 mm doors, load capacity up to 60 kg with 2 hinges.

Article code: 061668

These white 3D hinges are from the Italian company Otlav, which has been known for its hinges for years.

The white 3D hinges are available with a width of 23mm and 30mm. This model is the 30mm version.

These 30x120mm 3D hinges are unique and patented , allowing you to mill the 3D hinge perfectly in the center thanks to their width of 30mm. As a result, there is no difference between left-hand and right-hand doors.

These white invisible hinges have a height of 120mm, a width of 30mm, and are a beautiful all-black finish. They are supplied including 4 white cover caps. These 4 cover caps fit snugly over the hinges and stay securely in place. The assembly forms a beautifully finished white 3D hinge.

The advantage of Otlav 3D hinges is the metal cover caps compared to comparable plastic cover caps.

These white concealed Otlav Invisacta IN300120 hinges have a load capacity of 60 kg. This load capacity is based on the use of 2 hinges. They are also fire-resistant for 30 minutes.

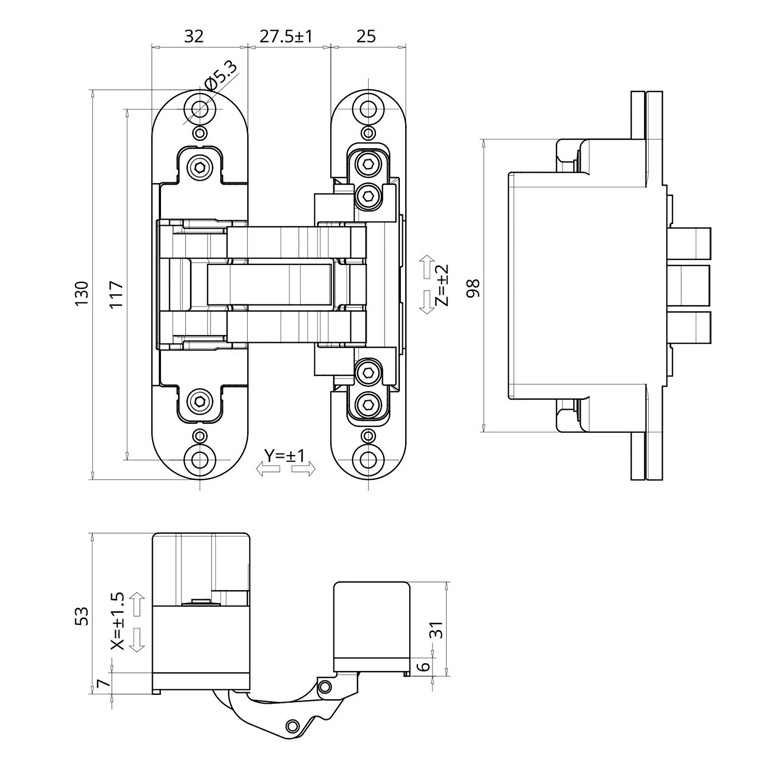

These 3D hinges can open 180° and can be 3D adjusted (±1mm laterally - ±2mm height - ±1mm depth).

The base of these white 3D hinges is made of Zamak. They are supplied individually without screws and include 4 cover caps.

Need a routing template? You can find a matching nylon routing template below under related products.
