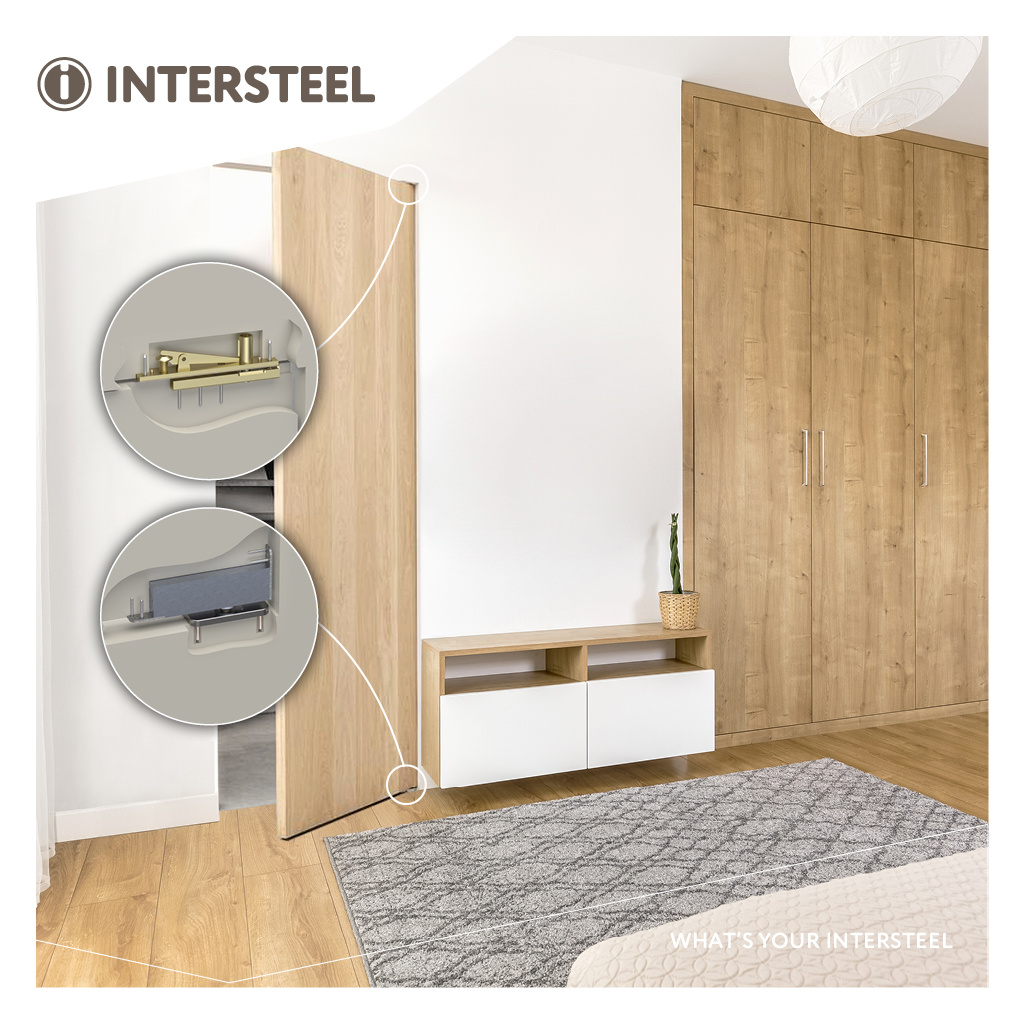

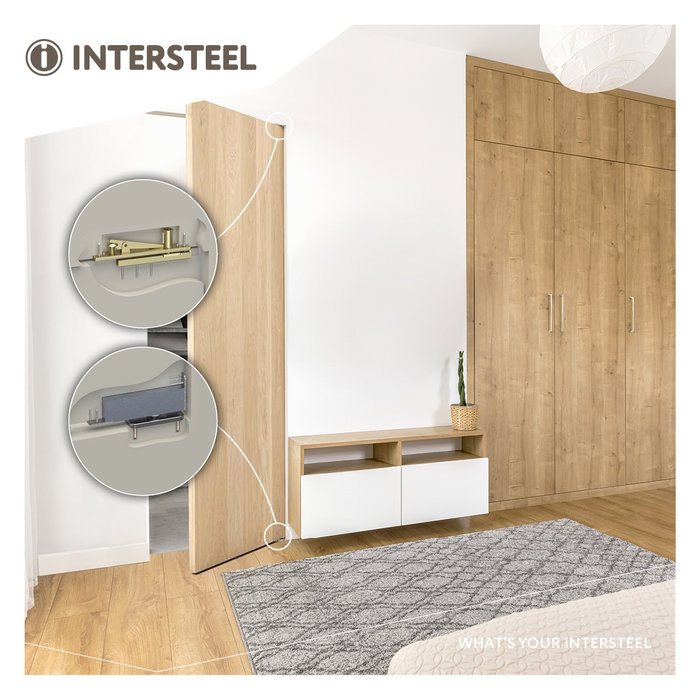

A pivot door hinge allows a pivot door to rotate around its vertical axis. The pivot points are located at the top and bottom of the door. Not only does it offer a practical and space-saving solution, but it also gives your interior a stylish and sleek look.

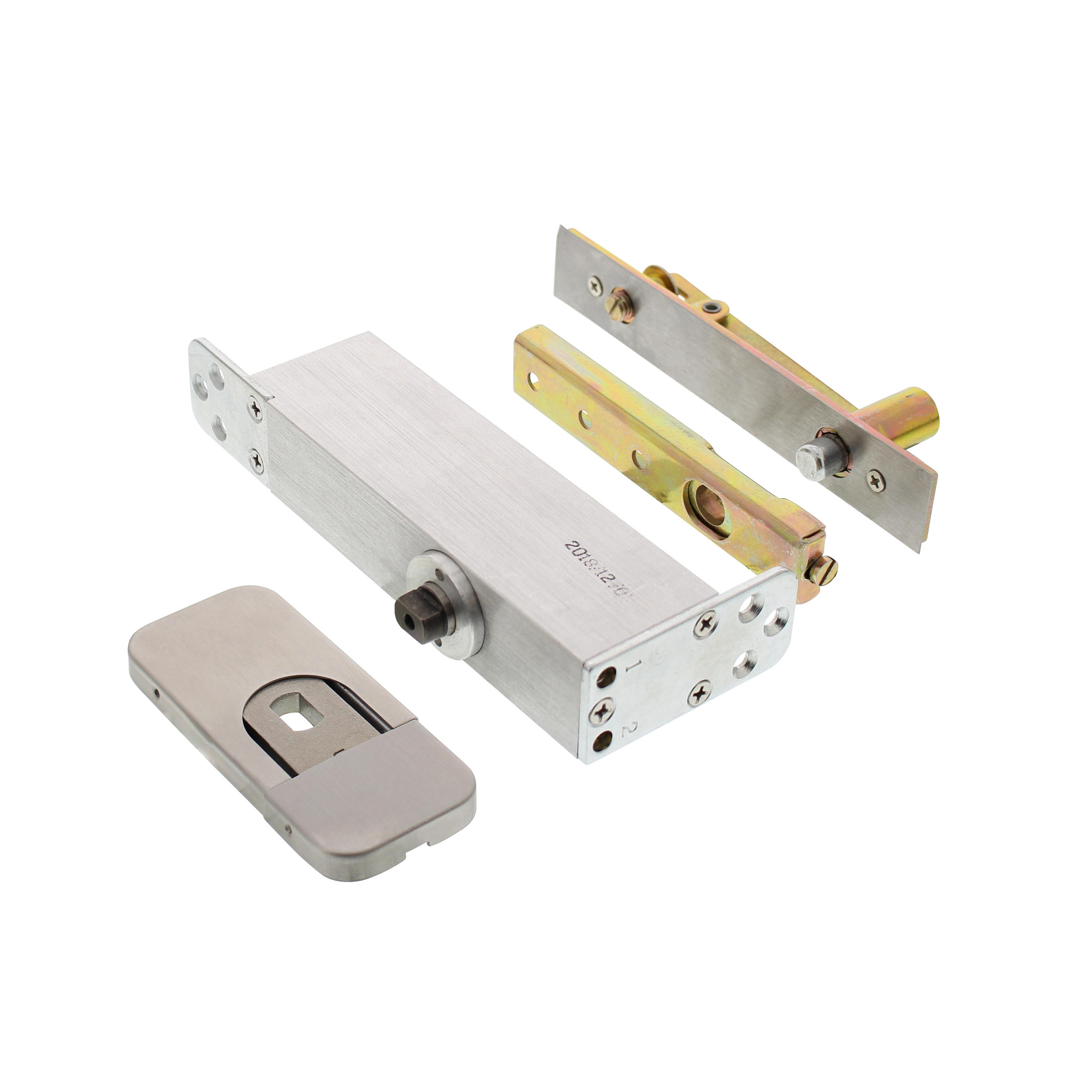

This pivot door hinge is made of aluminium and features a brushed stainless steel housing and cover caps. This hinge is suitable for wooden doors weighing up to 75 kilograms and with a door thickness of 40 mm or more.
The standard opening angle of the door from the closed position is 150°, and the pivot hinge has a locking mechanism of 90°. The closing speed of the door is adjustable, allowing you to determine how quickly the door closes.

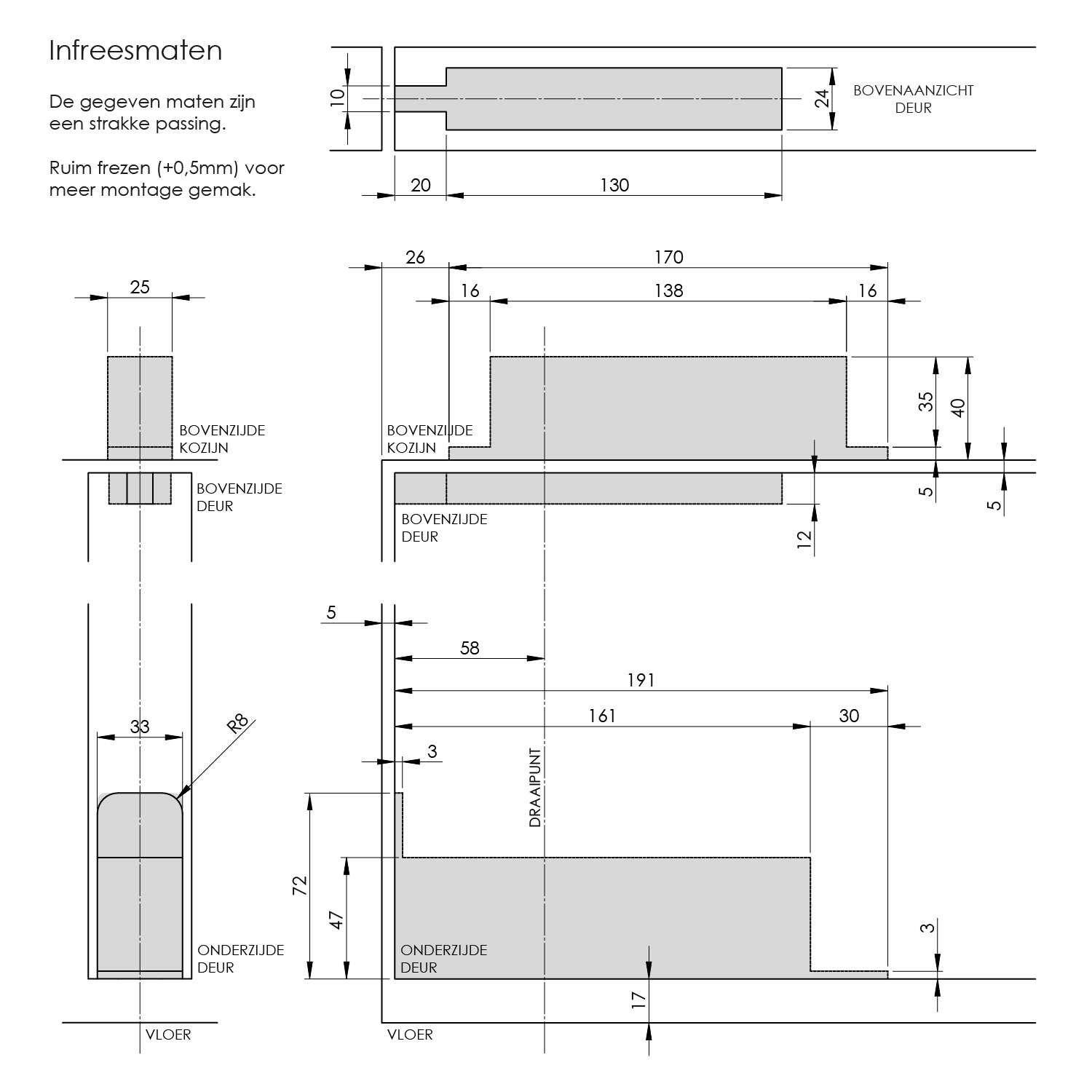

Installation takes place in the ceiling and on the floor, and the hinge is supplied individually, including mounting material.
