Description

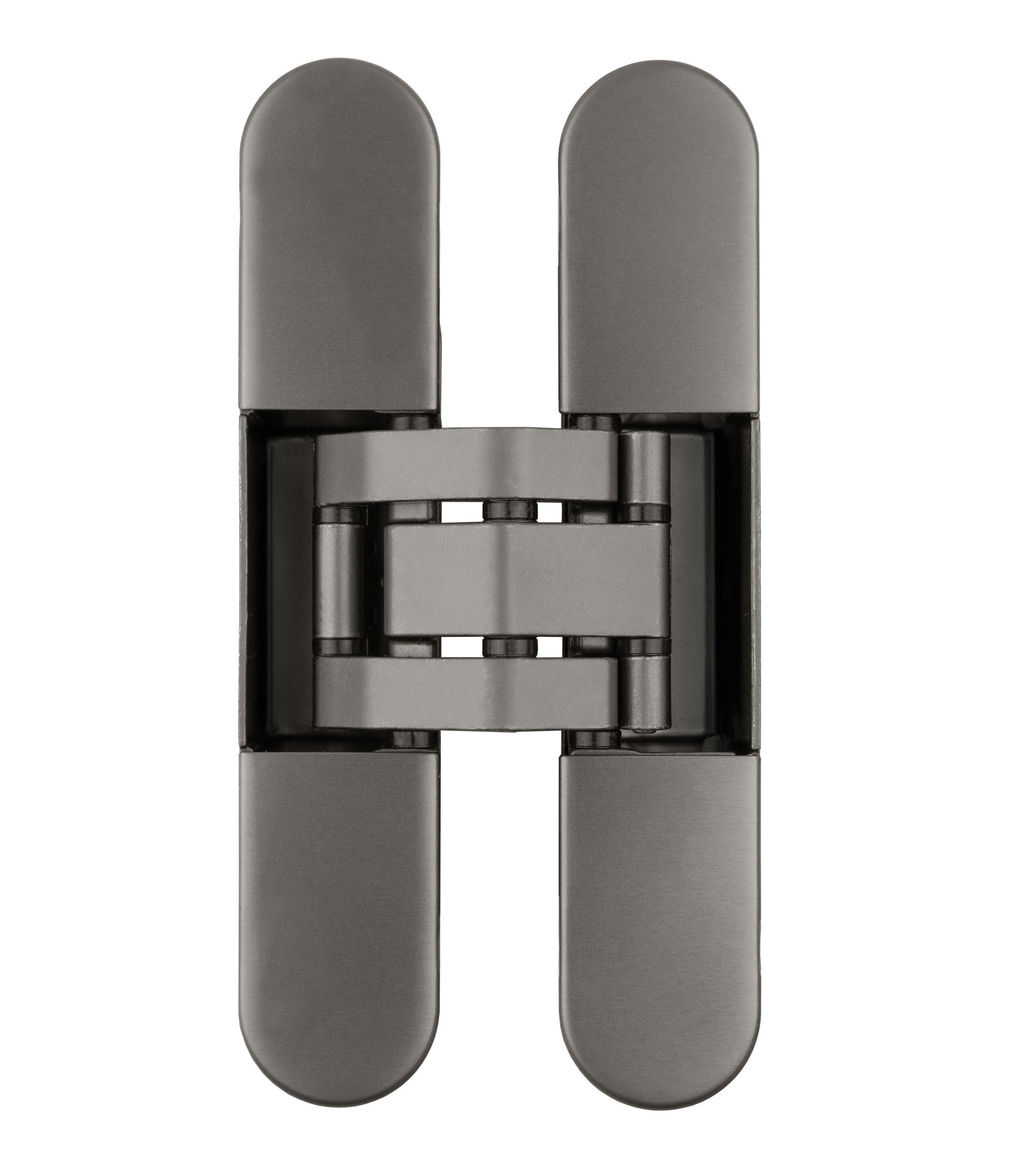

Dark titanium 3D hinge - 23x120mm - Otlav Invisacta IN230120NE02
Article code: IN230120VU02-057416
These dark titanium 3D hinges are from the Italian company OTLAV, which has been known for its hinges for years.
The gray 3D hinges are available in widths of 23mm and 30mm. This model is the 23mm version.

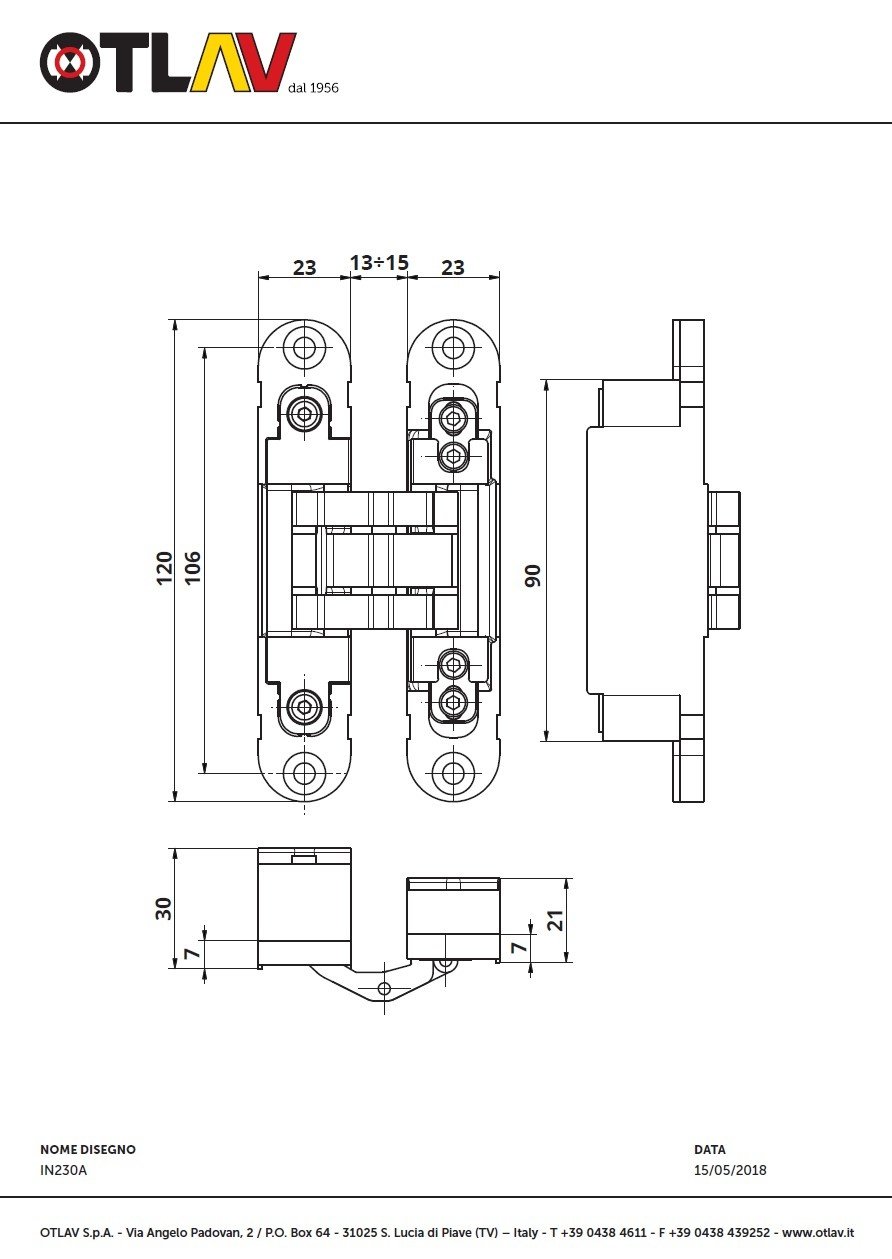

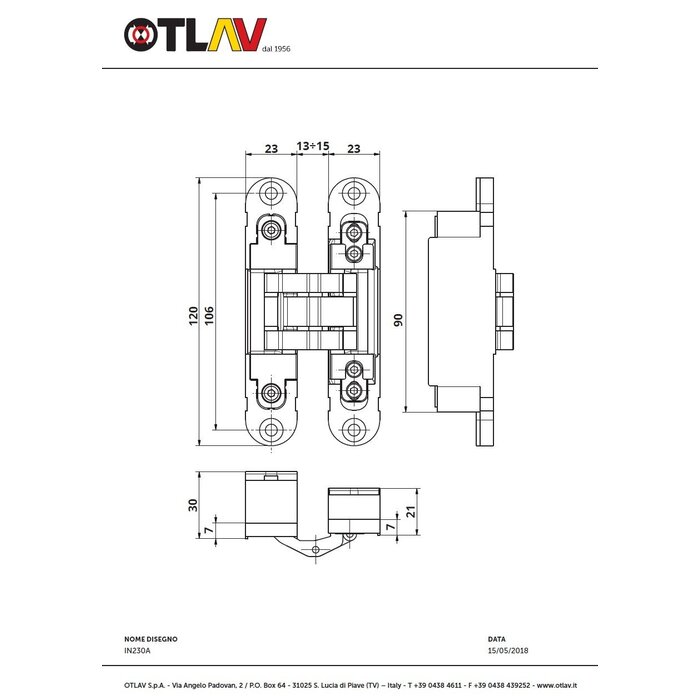

These dark titanium concealed hinges are 120mm high, 23mm wide and have a beautiful light bronze finish.
They come with four aluminum caps in the same color that neatly conceal the screws. These four caps fit snugly over the hinges and stay in place. The whole thing forms a beautifully finished dark titanium 3D hinge.
The advantage of this model is its metal cover caps compared to the comparable AGB Eclipse 3 model, which comes with plastic cover caps. The advantage of the wider Otlav model (30x120mm, IN300120) is that it can be used on both the left and right sides.

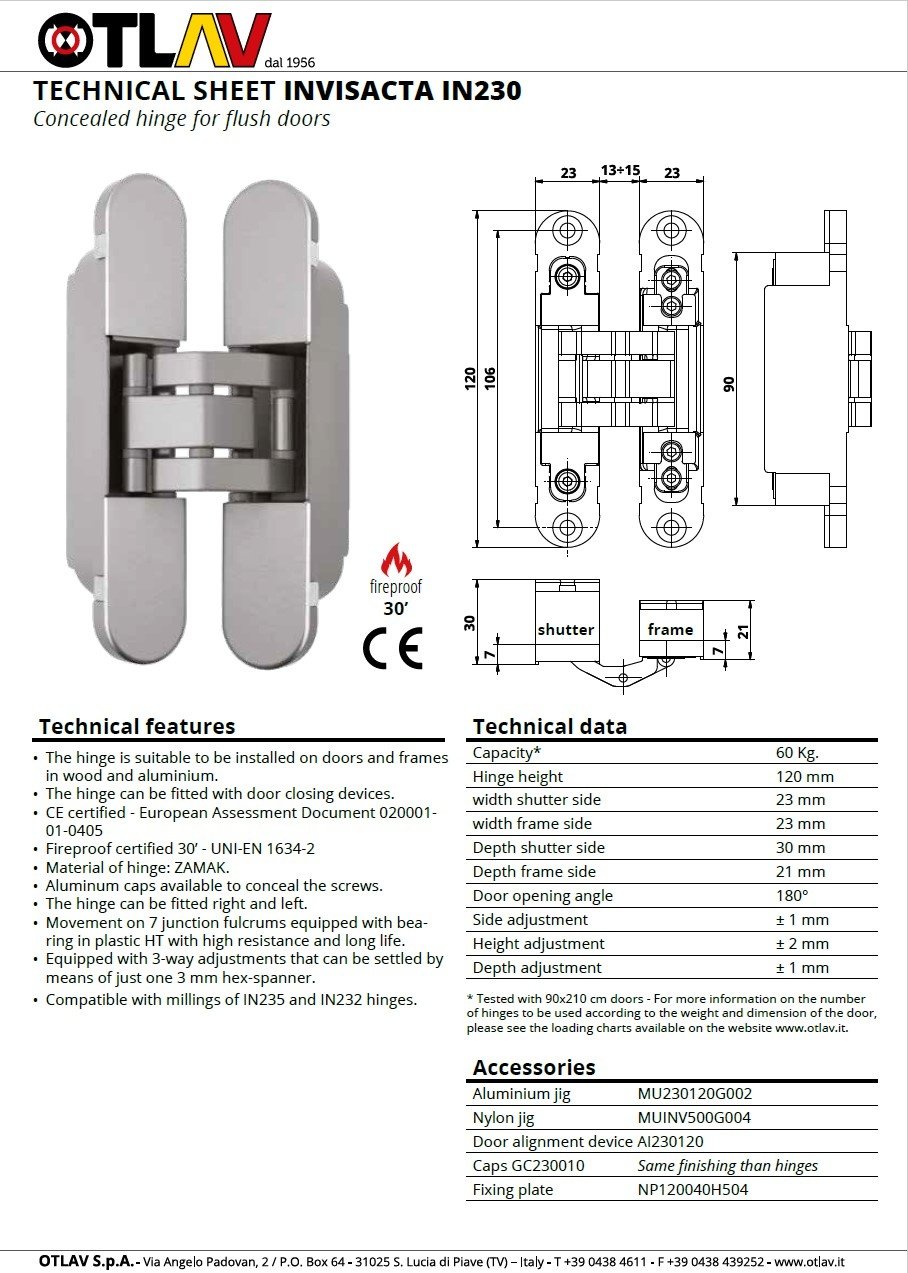

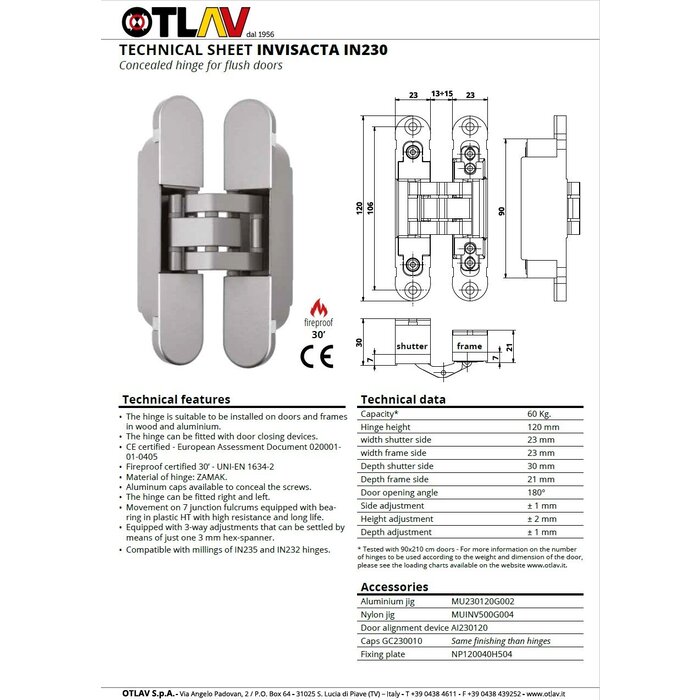

These titanium gray concealed Otlav Invisacta IN230120 hinges have a load capacity of 60 kg. This capacity is achieved with two hinges. They are also fire-resistant for 30 minutes.

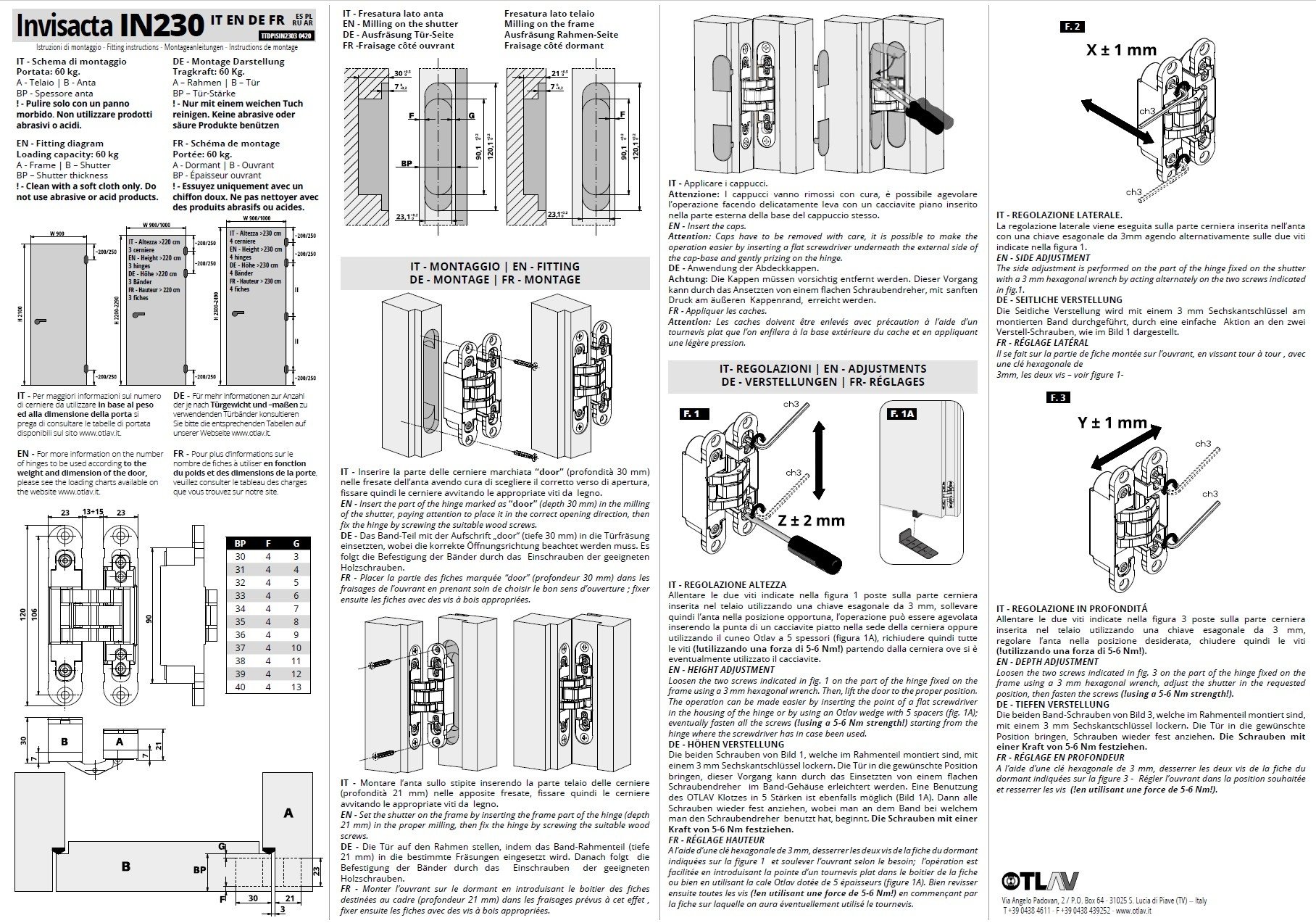

The gray hinges can open 180° and can be adjusted in 3D (±1mm laterally - ±2mm height - ± 1mm depth).
They are supplied individually without screws and including 4 cover caps.

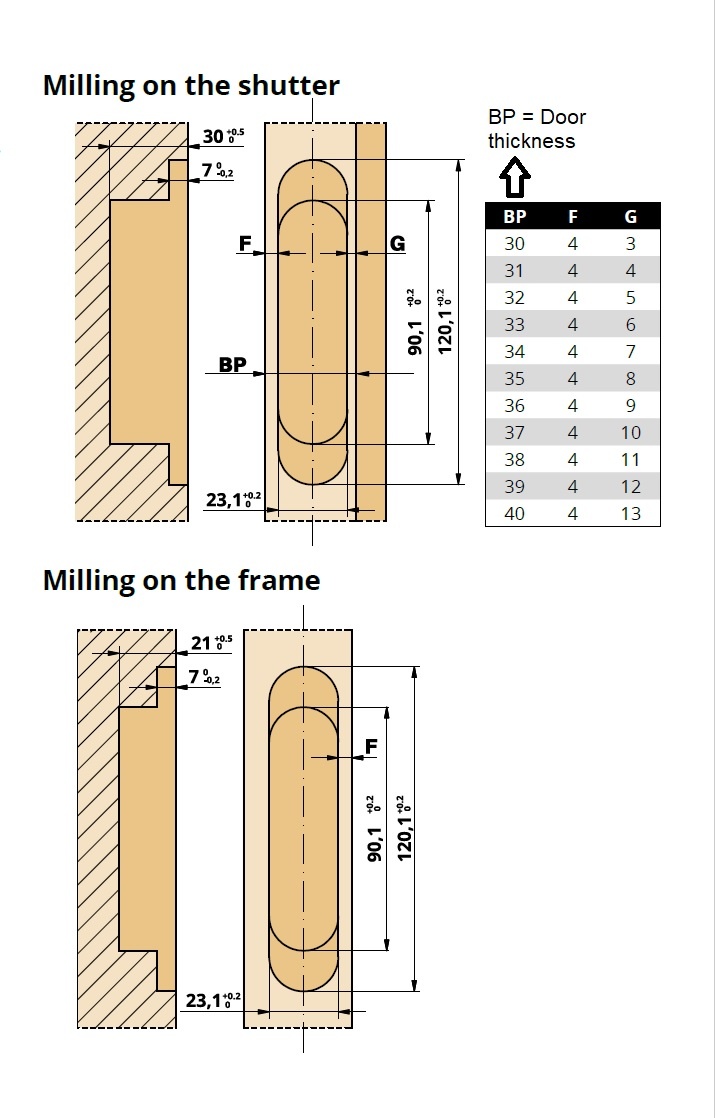

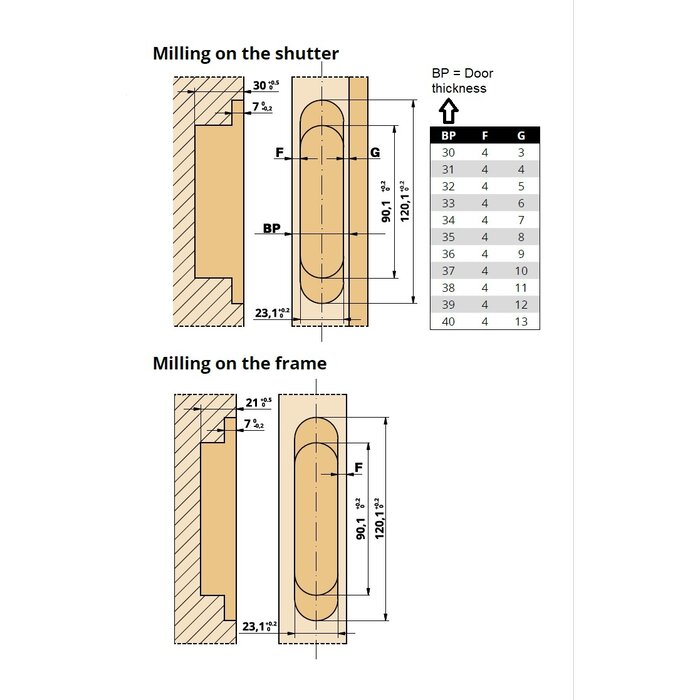

Need a milling template? You can find a matching Nylon milling template below under related products.
